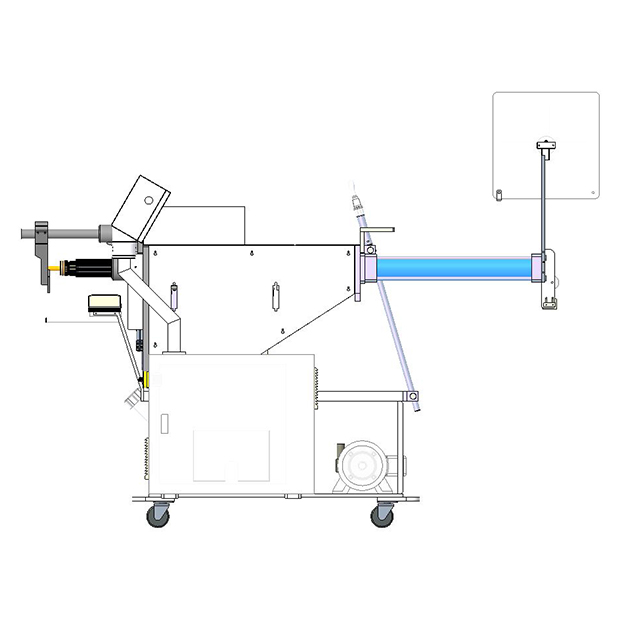

Introducing the Stator Coil & Wedge Inserter, a cutting-edge device designed with a mechanism-driven and adjustable system for inserting coil and wedge simultaneously, along with paper detection. This innovative technology facilitates efficient insertion of coils and wedges into stators, improving productivity and accuracy. Its mechanism-driven and adjustable system ensures smooth and precise insertion, while the ability to insert both coil and wedge simultaneously increases efficiency. The paper detection system detects the material and ensures accurate insertion, reducing errors. This state-of-the-art device is ideal for businesses looking to improve their production processes and increase efficiency.
Mechanism Driven and Adjustment
Inserting Coil & Wedge Simultaneously
|Stator OD/ID Limit (mm)||IDØ18-120|
|Stator Core Length Limit (mm)||10-120|
|Cycle Time (Sec)||< 30 sec/time|
|Floor Area (W*L*H) (cm)||120*120*180|
|Machine Weight (Kg)||1400|
|Main Operation Power Source (KW)||2.3|
|Max. Power Consumption (KW)||2.7|
|Pneumatic Source (Kg/cm²)||NA|
|Voltage||Can be customized according to the voltage used in each country|
|Warranty||One year (Optional contract- extended warranty or regular maintenance)|
All specifications and designs are subject to change without notice.
