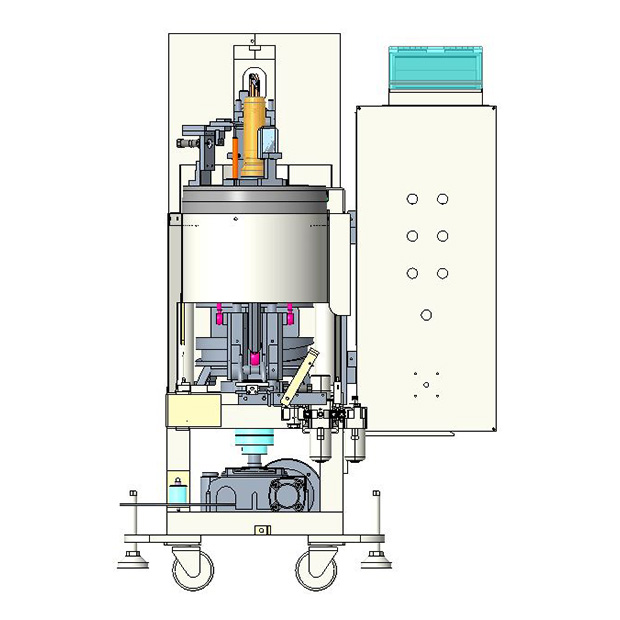

GMW L-1H Single End Lacing Machine

  • Stator ID Range (mm): IDØ35-140
  • Stator Core Length Range (mm): 20-175
  • Cycle Time (Sec/Stirch): < 0.7
  • Driven System: AC/Servo Motor
  • Single End Lacing Machine GMW L-1H
  • Single End Lacing Machine GMW L-1H
  • Single End Lacing Machine GMW L-1H
  • Single End Lacing Machine GMW L-1H
  • Single End Lacing Machine GMW L-1H
  • Single End Lacing Machine GMW L-1H

Feature

The Single End Lacing Machine is a cutting-edge solution for fast and efficient lacing of electric motor stators. Equipped with servo control indexing and self-programmable lacing patterns on both sides, this machine allows for a wide range of lacing options to suit any production needs. The editable production data feature further enhances its flexibility and adaptability. With adjustable lacing tension, the Single End Lacing Machine ensures a consistent and precise lacing process every time. If you're looking for a reliable and high-quality lacing machine, the Single End Lacing Machine is the perfect choice for you.

  • 01

    Servo Control Indexing

  • 02

    Self-Programmable Lacing Pattern at both sides

  • 03

    Editable Production Data

  • 04

    Adjustable Lacing Tension

Specifications

Lacing Thread Dia. (mm) MAX.  Ø 1.2
Stator OD/ID Limit (mm) IDØ35~140
ODØ200 MAX
Stator Core Length Limit (mm) 20-175
Cycle Time (Sec/Stirch) < 0.7
Floor Area (W*L*H) (cm) 85*120*130
Machine Weight (Kg) 480
Main OperationPower Source (KW) 0.4
Max. Power Consumption (KW) 1.4
Pneumatic Source (Kg/cm²) 4~7
Use Voltage Can be customized according to the voltage used in each country
Warranty One year (Optional contract- extended warranty or regular maintenance)

All specifications and designs are subject to change without notice.
